LogiLink

Patch panel 12-port Cat6 for 10" rack U1 Black

Udsalgspris237,00 SEK
Udsolgt

Inkl. moms. Fragt beregnes i kassen

Temporarily out of stock — contact us for lead time
Brand
LogiLink
Category
Cables & Adapters
Unit weight
886 g
B2B customers only50,000+ SKUs10+ years experience

LogiLink Cat.6 Patch Panel 12-port shielded, 10-inch rack-mountable, black

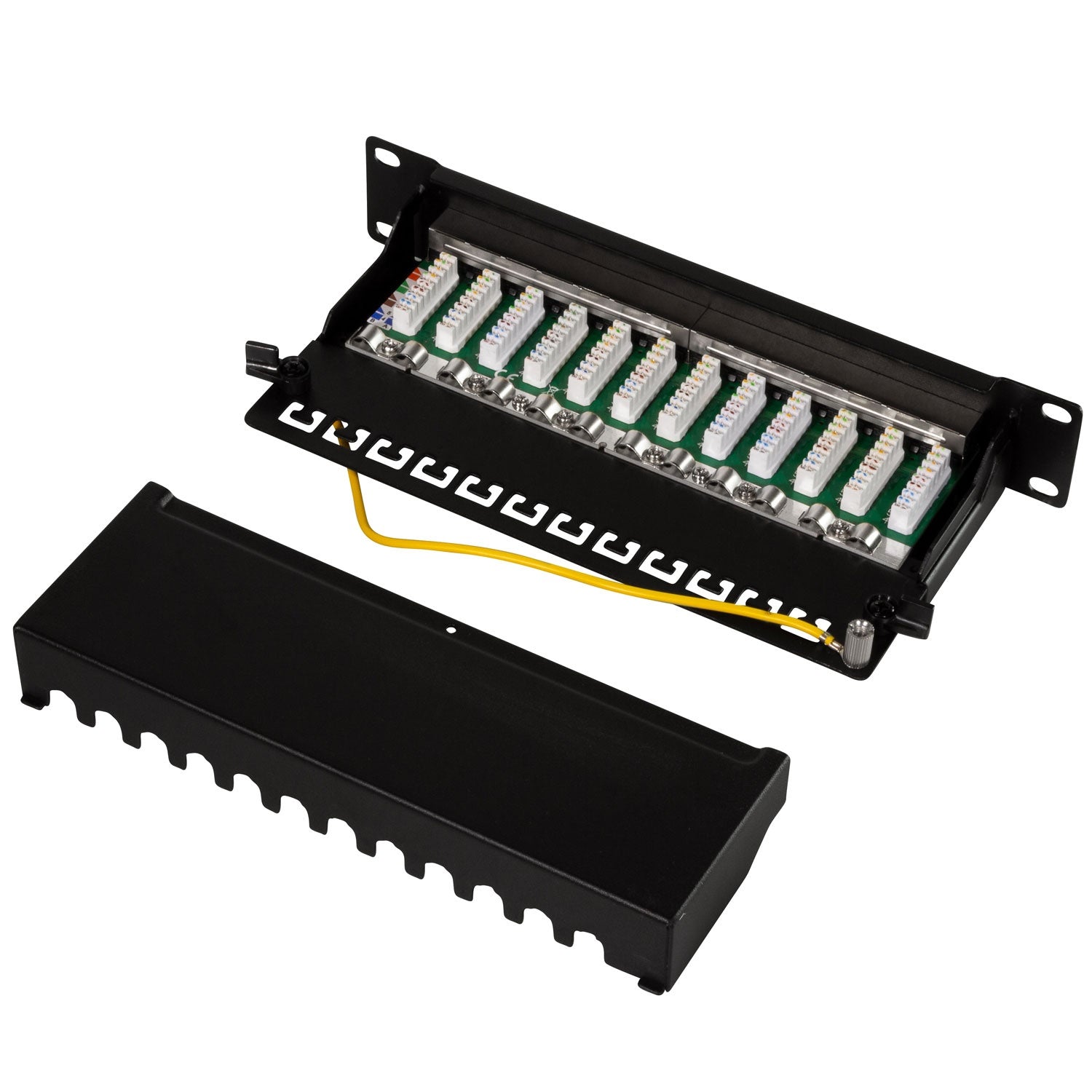

This LogiLink Patch Panel is made of robust sheet steel and painted in RAL7035. Cat.6 corresponds to the performance specification ISO/IEC 11801 CLASS E. The cable installation takes place via the LSA terminal blocks. It has 12 RJ45 connection sockets. The patch panel can be used up to 250 MHz. The screen cover is removable using two knurled screws and is therefore particularly easy to install. The strain relief is fixed using the knurled screws.

• Cat.6 Patch Panel 12-port, shielded
• Suitable for 10" installation
• According to Cat.6 Class E, ISO /IEC 11801

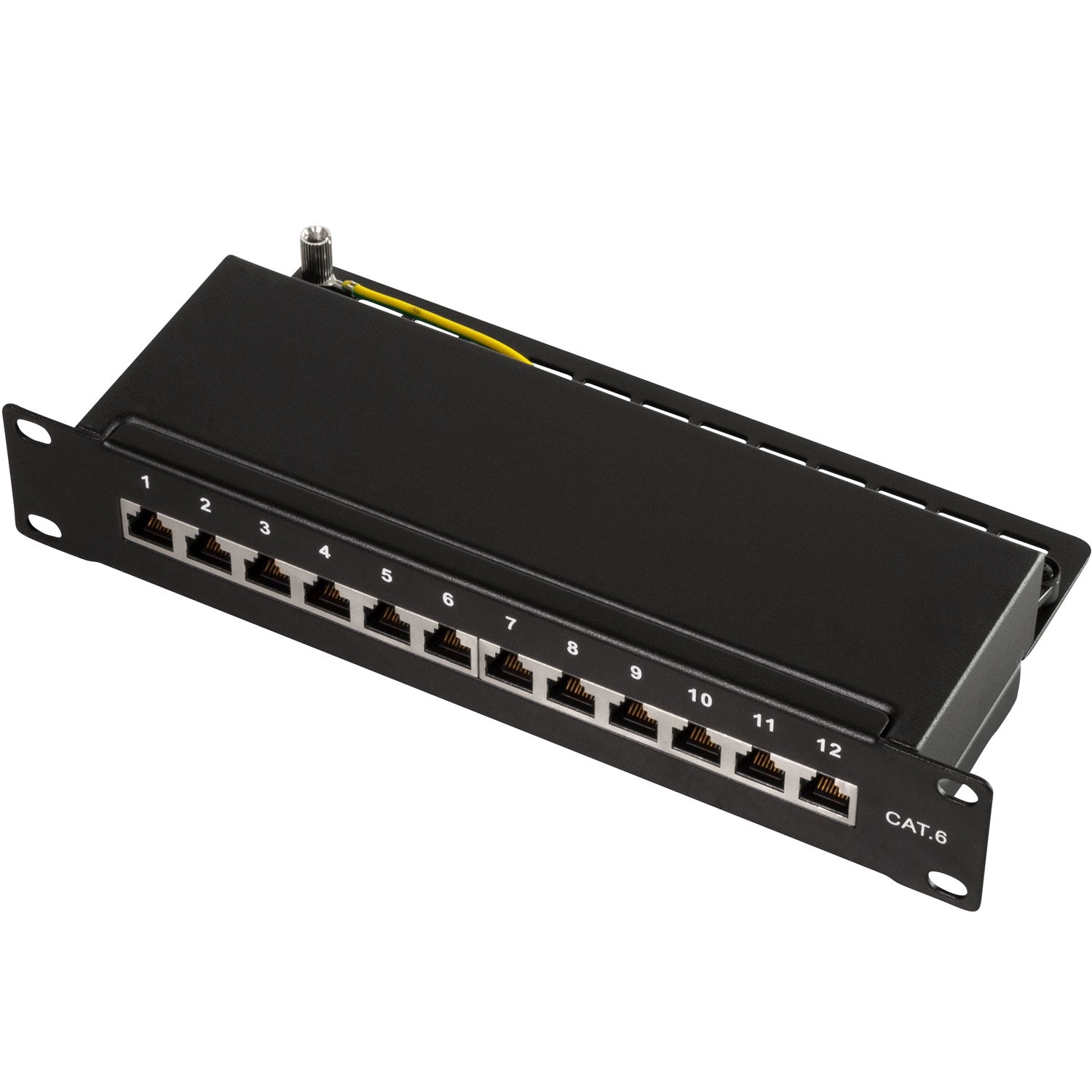

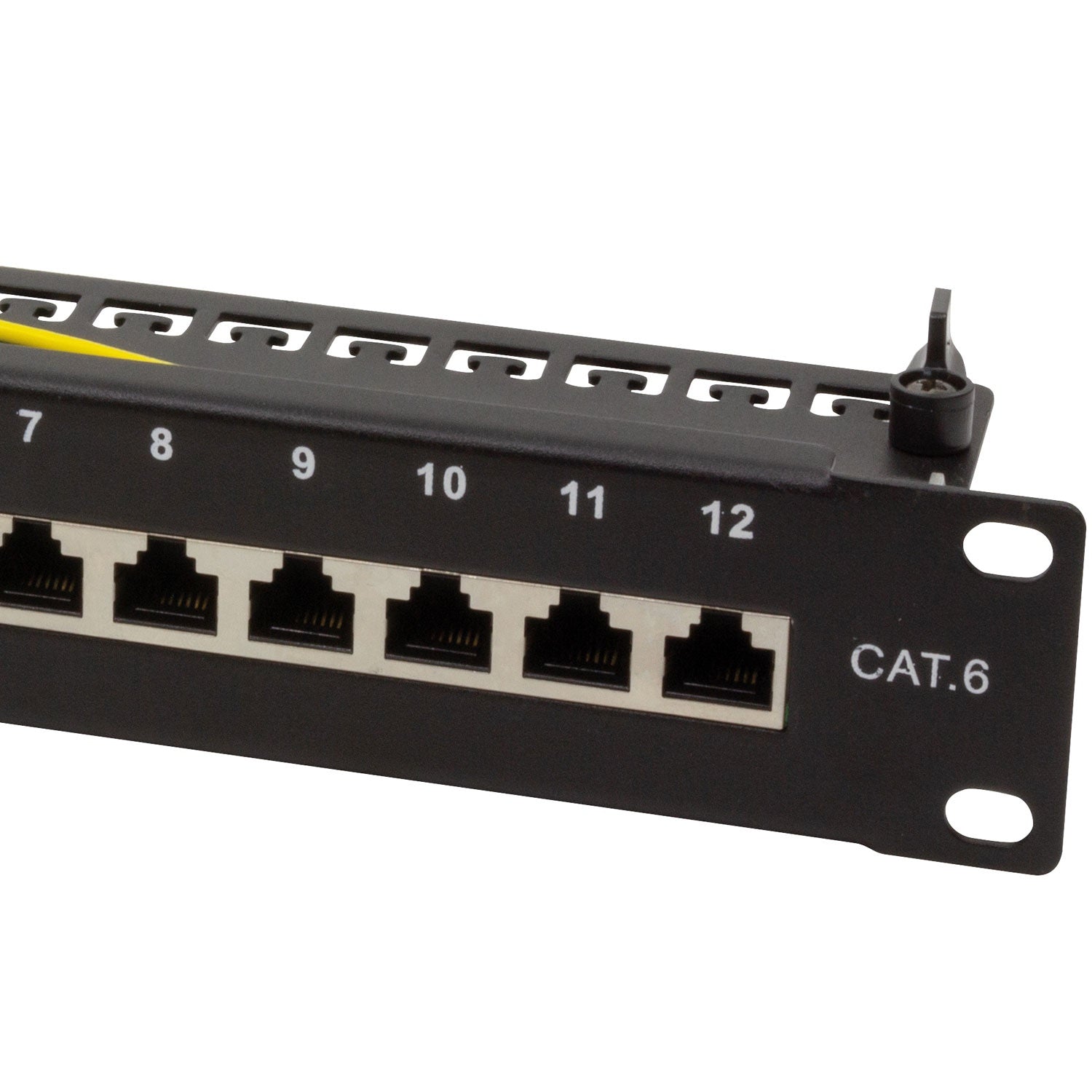

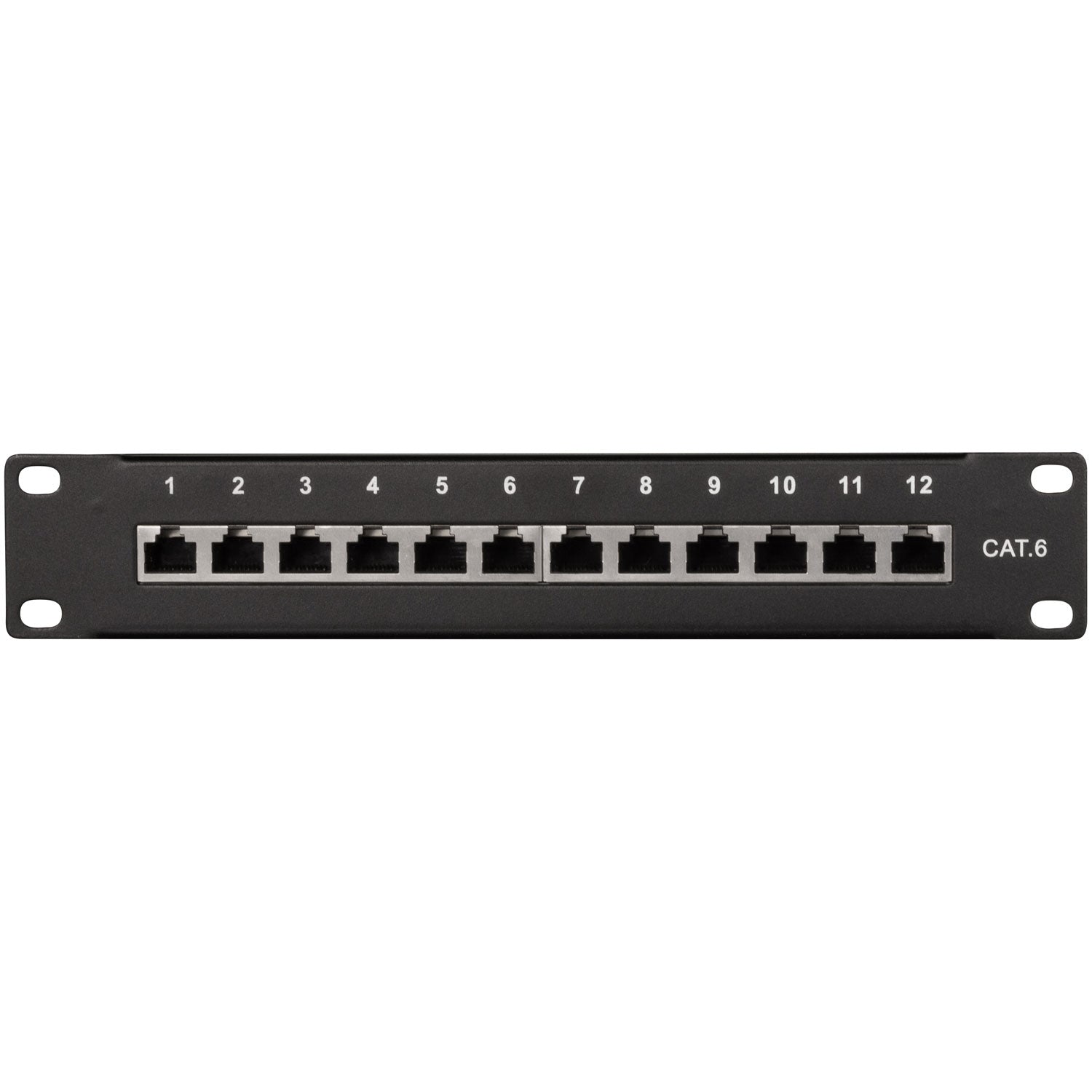

• 12 shielded RJ45 ports
• Installation via LSA strips
• Color coded according to EIA/TIA 568 A&B

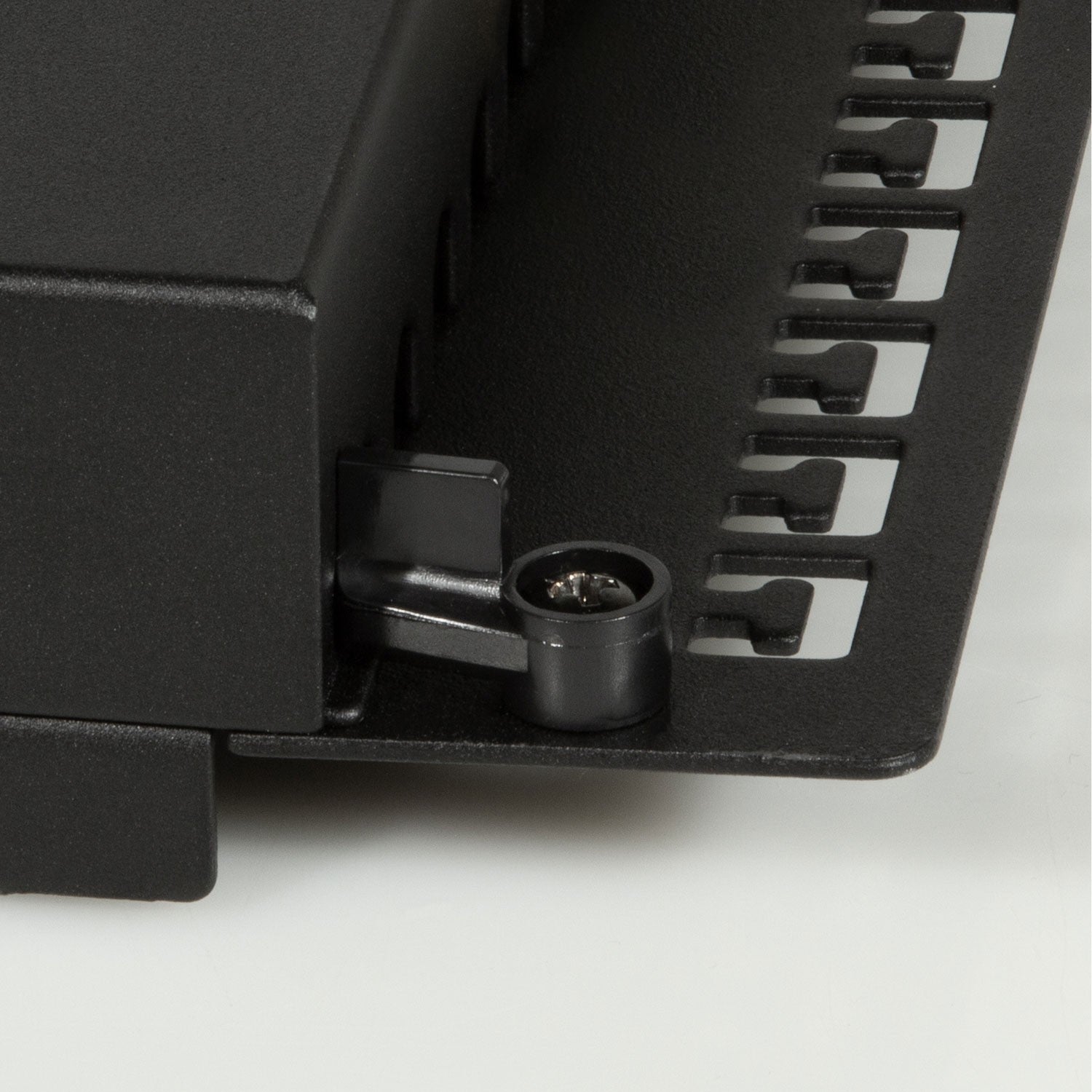

• Cable fixing with cable clamp
• Ground wire mounting point
• Color: Black

Dimensions:
Height: 4.42 cm
Width: 10.8 cm
Length: 25.8 cm

Product document
